All in one Smith Machine G6S – Multi Functional Trainer with Weight Stack | Commercial & Home Gym Equipment Australia

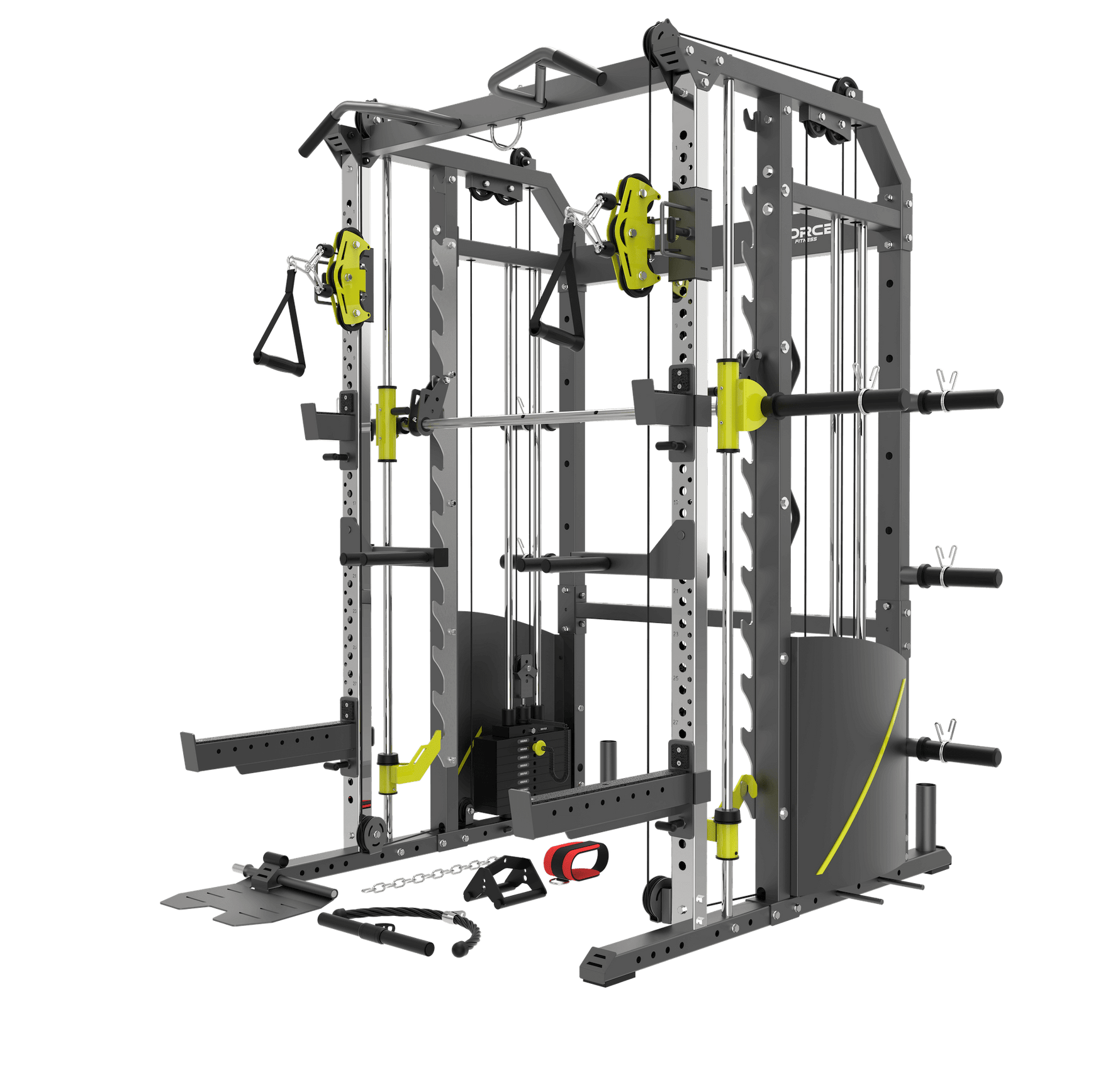

The Functional Smith Machine G6S delivers a premium all in one training station for Australian home gyms, PT studios, and commercial facilities. It combines a Smith Machine, a Power Rack, and a Dual Adjustable Pulley system in a compact footprint, giving you heavy compound lifts, precise cable work, and safe solo training in one space saving unit.

Built with a heavy gauge steel frame, linear bearing Smith guide, aluminium alloy pulleys, and high tensile cables, the G6S runs smoothly under serious load. Selectable 1 to 1 and 2 to 1 pulley ratios let you tailor resistance for different movements, while integrated storage keeps your space tidy and efficient. With comprehensive accessories included, you are set from day one for full body strength and conditioning.

Assembled Dimensions

Rack dimensions are 2030 mm wide, 1735 mm deep, and 2130 mm tall. Please allow extra clearance above and around for safe movement and overhead work.

Maximum Loading Capacity

Smith machine, 620 kg static loading test
Cable pulley system, 555 lbs tested rating
J cups and safety spotter, 670 kg static loading test
Dip handles, 340 kg static loading test
Chin up handles, 340 kg static loading test
Weight storage pin, 135 lbs rating

Specification, Features, Inclusions, Optional Accessories

Steel weight stacks, 2 x 60 kg for 120 kg total, five kilogram plates with 5 kg increments
Metal weight stack shield provides a clean look and safer operation
Aluminium alloy pulleys deliver a smooth cable run similar to commercial club machines
Triple pulley system with 180 degree swivel and zinc plated handle, quick height changes for any user
Tri pulley system allows switching between 1 to 1 and 2 to 1 ratios to optimise the stack for exercise selection
Use 2 to 1 for smaller muscle groups such as lateral raise and triceps pressdown
Use 1 to 1 for larger muscle groups such as lat pulldown and heavy rows
Sixty five millimetre spring buffer protects the mechanism from accidental plate drops
Smith bar accepts Olympic and Standard plates, stainless steel Olympic sleeves with spring collars included
Built in band hooks work with the Smith carriage to add progressive resistance without buying extra plates
Linear bearing Smith travel for a smooth and quiet guide
Laser cut barbell catch engages the stopper reliably for safer racking
Multi angle pull up handles with non slip end grips for wide, close, and neutral variations
Flip down metal footplate with non slip surface for seated rows and a handy calf stretch platform
Safety spotting arms with ABS pad protect the barbell and provide a softer landing
Adjustable dip handles with no slip texture, set wide or narrow to suit your frame and goal
Integrated storage, six plate prongs accept Olympic and Standard plates, swivel hooks for attachments, two vertical barbell holders, rear cable attachment rack, rooftop barbell rack

Accessories Included

Double headed straight bar
Double headed curl bar
Short straight bar
Link chain
Triceps rope
Ankle strap
Close grip triangle
Dip attachment
All accessories store neatly at the rear on designated positions for a clean and organised setup

Core System Highlights

Three in one training platform that blends guided barbell work, free bar racking, and adjustable cables
Dual sixty kilogram weight stacks with protective shrouds and tidy storage
Selectable pulley ratios for precise progression and smarter programming
Heavy duty frame with durable finish for long service in busy environments
Smooth linear bearings and premium pulleys for reliable daily use

What You Can Train

Smith bar, squats, bench press variations, overhead press, Romanian deadlifts, lunges
Functional trainer, lat pulldown, seated row, face pull, cable fly, curl, triceps pressdown, crossovers
Bodyweight, pull ups, chin ups, dips, hanging leg raises, inverted rows

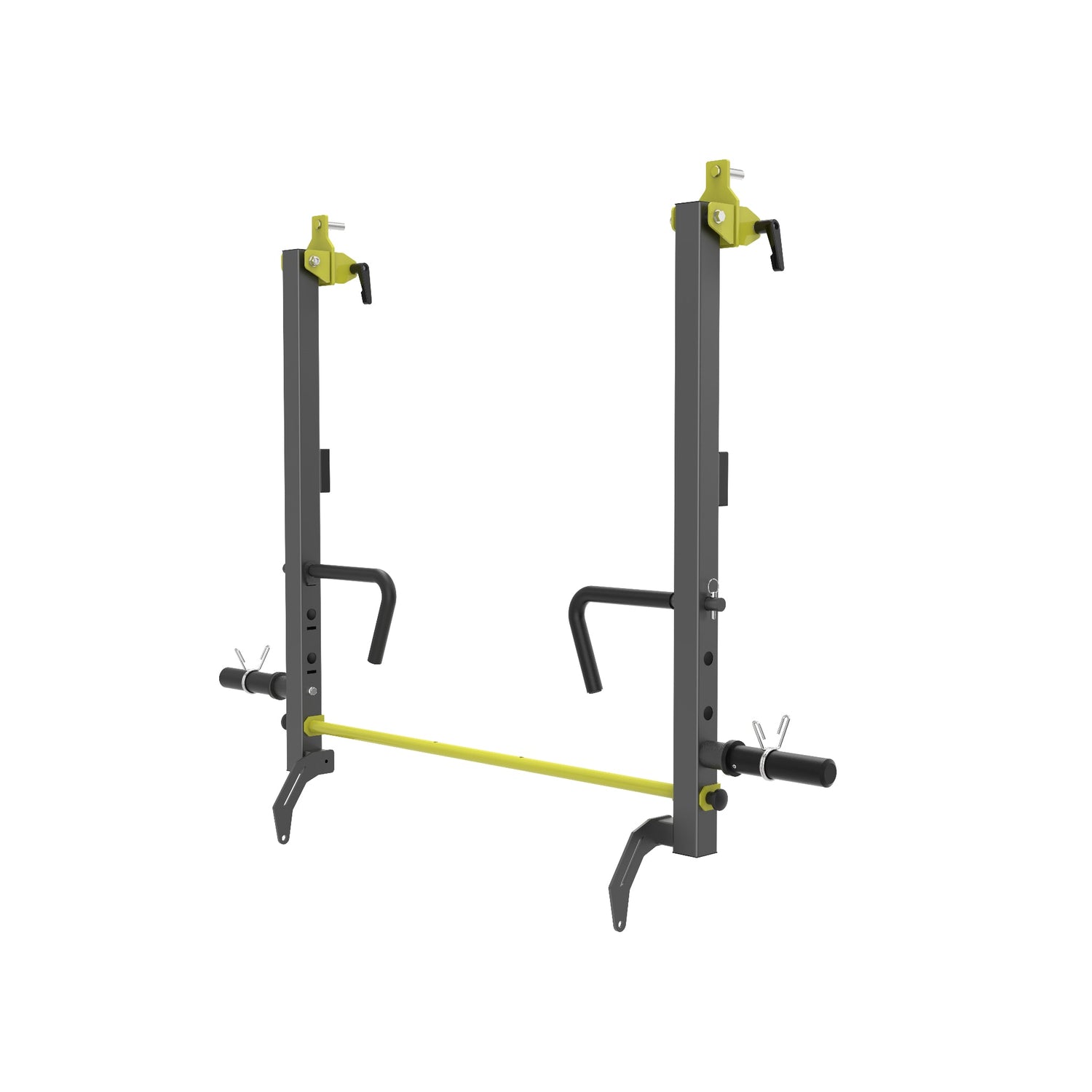

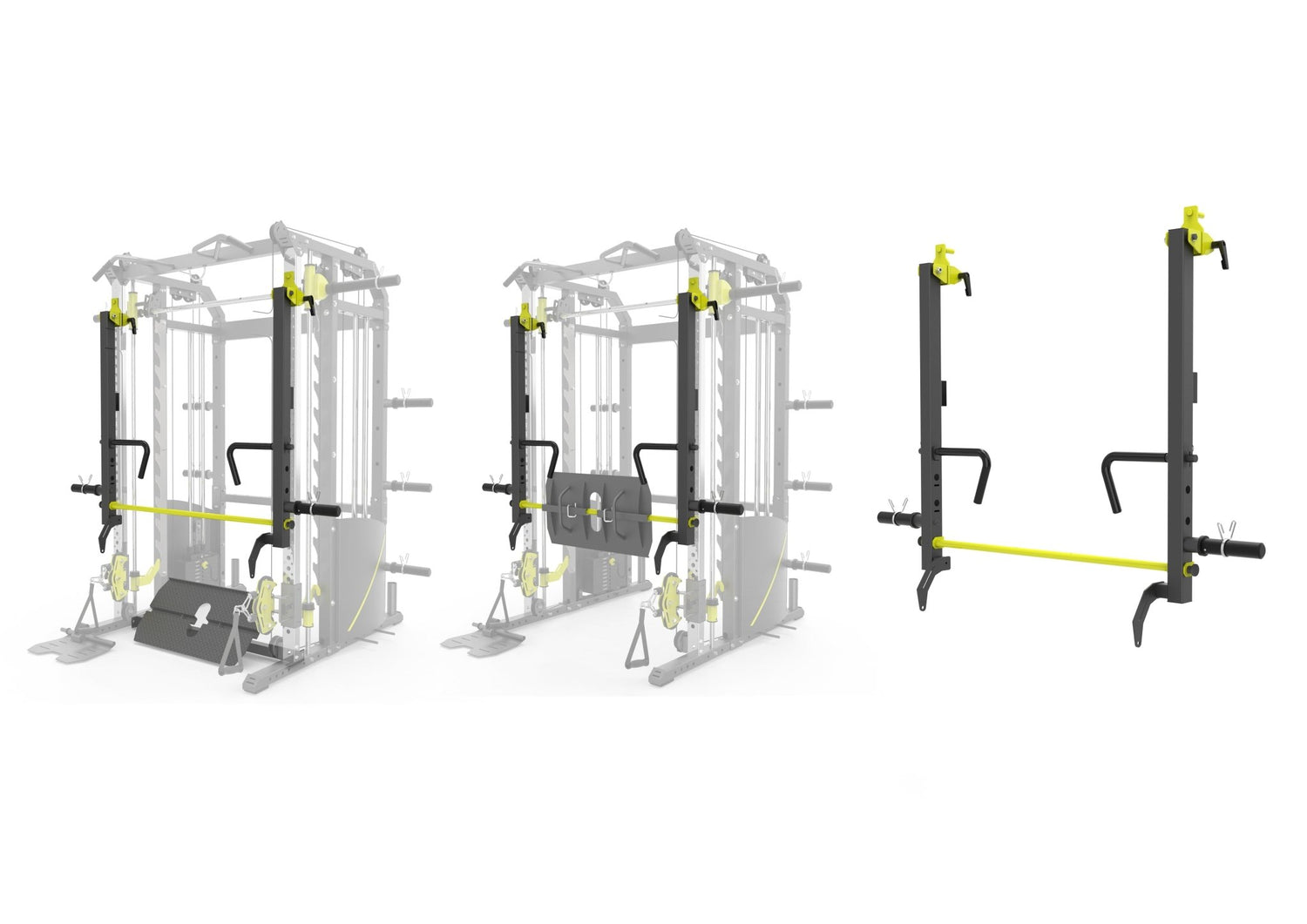

Advanced, landmine rotations, jammer arm presses and rows, core twists, unilateral rows

Specifications

Overall, 2130 mm H, 2030 mm W, 1735 mm D
Weight stacks, 2 x 60 kg, five kilogram plates, 5 kg increments
Cable ratios, selectable 1 to 1 and 2 to 1
Smith bar ratio, true 1 to 1 feel
Frame, powder coated heavy gauge steel with corrosion resistant finish
Pulleys, precision aluminium
Guide, linear bearings for consistent travel
Use case, suited to home, PT studio, and commercial settings
Finish, matte black
Warranty, lifetime on frame, two years on moving parts and attachments

Why Choose the G6S

Home gym users, a compact all in one solution with pro level feel
PT studios, versatile programming in a small footprint with tidy storage
Commercial clubs, durable build quality ready for daily traffic
Athletes, explosive and controlled work using landmine and cables

Shipping and Installation, Australia

Fast delivery across Australia with options for residential and business addresses. Sydney Metro installation is available on request. Depot pick up can be arranged in major cities for convenience and value.

FAQs

Q, Does it fit a standard garage
A, Yes. At 2130 mm tall it fits most standard garages and spare rooms. Allow headroom for pull ups and overhead presses.

Q, Can I switch pulley ratios during a session
A, Yes. The tri pulley system lets you alternate between 1 to 1 and 2 to 1 quickly so you can match the resistance to the movement.

Q, Are Olympic plates required
A, The Smith sleeves take Olympic plates and Standard plates. Band hooks allow extra resistance without buying more plates.

Q, Do you provide assembly
A, Yes. Professional assembly is offered in Sydney Metro. Ask our team for a quote when you check out.

Q, What is included out of the box
A, A full accessory kit listed above, J hooks, safety spotters, dip handles, pull up station, and integrated storage so you can train on day one.
