Gym Rubber Flooring Australia: The Complete 2026 Buyer's Guide
Gym Rubber Flooring Australia
Everything you need to know about rubber gym flooring — from 15mm home gym tiles to 50mm Olympic platforms. Written by the team at 24/7 Gym Equipment, Australia's flooring specialists.
Gym rubber flooring is high-density vulcanised rubber tiling designed to absorb shock from dropped weights, reduce noise, protect concrete and timber subfloors, and provide non-slip footing for strength, functional and cardio training. In Australia, 15mm thickness is the industry standard for home gyms and PT studios, 20mm is recommended for heavy weightlifting and apartments, and 30–50mm is reserved for Olympic lifting platforms. Premium tiles are 1m × 1m, weigh 18–25kg each, and last 10–15 years under commercial use.
1. What Is Gym Rubber Flooring?
Gym rubber flooring is engineered, high-density rubber tiling installed beneath strength, functional and cardio equipment to absorb impact, reduce noise, prevent slips, and protect both the subfloor and the equipment itself. In Australia, it is most commonly supplied as 1m × 1m vulcanised tiles in thicknesses from 10mm to 50mm, made from recycled SBR rubber granules bonded with a polyurethane (PU) binder, or as premium EPDM compound for outdoor and high-aesthetic applications.
The category covers a wide spectrum of products engineered for very different jobs. A 10mm general-purpose tile under a stationary bike has almost nothing in common with a 50mm Olympic lifting tile rated for 200kg barbell drops — yet both fall under the umbrella of "gym rubber flooring." Understanding the distinction is the single biggest factor in buying the right product.
Material Characteristics of Premium Australian Gym Flooring
- High density (950–1100 kg/m³) so the tile resists permanent compression under racks, benches and weight stacks
- Vulcanised construction so the rubber is heat-cured and dimensionally stable across the wide temperature range Australian garages experience (5°C Melbourne winter mornings to 50°C+ Perth summers)
- Shore A hardness around 60–65 — firm enough for stable footing under heavy lifting, soft enough to absorb dropped weights
- Low-VOC certification so the tile is safe for enclosed indoor use in home gyms, apartments and PT studios
- Fire-rated material (flash point >200°C, auto-ignition >350°C) for compliance in commercial fit-outs
For 90% of Australian buyers — home gym owners, garage lifters, PT studios — a premium 15mm tile is the right specification. Stepping up to 20mm is only worth the additional cost when you are regularly dropping barbells, training in a strata building or above ground floor. Stepping up to 50mm is for dedicated Olympic platforms only.
Gym rubber flooring is not a single product — it is a category. The right choice depends on what you lift, where you lift, what is beneath the floor and who is below or beside you.
2. Why Gym Flooring Matters
Gym flooring matters because it simultaneously protects four expensive things: your subfloor (concrete cracking, timber denting), your equipment (bent barbells, chipped plates, cracked rack feet), your body (joint impact, slip injuries), and your relationships with neighbours (noise transmission). Skipping proper flooring is the single most common — and most expensive — mistake new home gym owners make.
A dropped 100kg barbell delivers approximately 980 newtons of force into the floor at the moment of impact. Without rubber flooring, that force is absorbed by:
- Your concrete slab — repeated impact creates micro-fractures that progress to visible cracks over 6–18 months
- Your barbell — uncushioned drops bend the bar over time, especially cheaper non-Olympic bars
- Your bumper plates — drops onto bare concrete chip the rubber edge and crack the steel hub
- Your joints — the rebound energy travels up through your shoes into your knees, hips and lower back
Premium rubber flooring disperses that 980 newtons laterally across the tile and downward through the rubber's compressive matrix, reducing the peak force transmitted to the subfloor by 60–80% depending on thickness.
Real-World Examples
- A Sydney customer dropped 140kg deadlifts on bare polished concrete in a renovated terrace for six months. The slab cracked and the repair was quoted at $3,400 — more than four times what 16m² of 15mm rubber flooring would have cost.
- A Perth CrossFit affiliate trained on 8mm foam tiles for two years before upgrading. Their barbell collars were unusable, two power rack feet had cracked through, and three sets of bumper plates needed replacement — a $4,800 lesson.
- An apartment lifter in Melbourne received a body corporate cease-and-desist after neighbours below complained about pre-dawn deadlifts. Adding 20mm rubber resolved the complaint without changing the training schedule.
Quality rubber flooring is not a luxury upgrade — it is the cheapest insurance policy in the entire gym fit-out budget.
3. Benefits of Rubber Gym Flooring
The eight key benefits of premium rubber gym flooring are: shock absorption, noise reduction, slip resistance, subfloor protection, equipment protection, joint protection, hygiene, and aesthetics. High-density 15mm vulcanised rubber tiles deliver all eight benefits simultaneously, which is why they have become the Australian industry standard.
The Eight Benefits Explained
1. Shock absorption is the headline benefit — dispersing the impact force of dropped weights laterally through the rubber matrix and protecting both the subfloor and the dropped equipment.
2. Noise reduction is critical for strata buildings and shared homes. Premium 15mm tiles reduce impact noise transmission to lower-level occupants by approximately 18–22 decibels — the difference between a clearly audible "thud" and a faint, muffled vibration.
3. Slip resistance comes from the textured matte finish standard on premium tiles. The micro-texture provides reliable grip even when surfaces are wet from sweat.
4. Subfloor protection prevents concrete cracking, timber denting, tile chipping and vinyl tearing — particularly important for renters and home owners considering resale value.
5. Equipment protection extends barbell life by 3–5×, bumper plate life by 2–3×, and prevents cracked rack feet, broken dumbbell heads and damaged bench frames.
6. Joint protection matters more as training volume increases. The compressive give of rubber under each footfall and rep accumulates into significantly lower wear on knees, hips and lower back over years of training.
7. Hygiene comes from the non-porous surface of premium tiles. Sweat, chalk, dust and dirt stay on the surface where they can be wiped clean.
8. Aesthetics is often underrated. A clean, professional rubber floor transforms a garage from "storage space with equipment in it" into a real training environment — a psychological shift that strongly predicts long-term training consistency.
When evaluating tiles, do not look only at thickness — verify density (kg/m³), Shore A hardness, VOC rating and fire-rating. A 15mm tile at 1000kg/m³ density outperforms a 20mm tile at 700kg/m³ density across every metric except outright noise dampening.
4. Rubber Flooring vs EVA Foam
Rubber flooring outperforms EVA foam tiles for every form of gym use beyond children's play mats and yoga. EVA foam compresses permanently under racks, tears under barbell drops, slides under heavy equipment and transmits more noise than rubber. EVA foam is appropriate only for bodyweight, stretching or kids' play areas — not for any environment involving weights, machines or barbells.
EVA foam (ethylene-vinyl acetate) is a closed-cell foam typically sold as 1cm thick interlocking jigsaw mats in bright colours. It costs roughly 30% of premium rubber per square metre, which is the entire reason it dominates the budget end of the market.
EVA vs Rubber: Performance Comparison
| Use Case | EVA Foam | Premium Rubber |
|---|---|---|
| Toddler play area | ✓ Suitable | Overkill |
| Yoga / stretching only | ✓ Suitable | ✓ Better |
| Bodyweight HIIT | ⚠ Marginal | ✓ Recommended |
| Dumbbells under 20kg | ✗ Damages quickly | ✓ Recommended |
| Power rack / squat rack | ✗ Compresses permanently | ✓ Essential |
| Barbell training | ✗ Tears on drops | ✓ Essential |
| Commercial gym | ✗ Unacceptable | ✓ Industry standard |
EVA foam is a children's product borrowed into the adult fitness market by cost-led retailers. It does not belong under serious training equipment.
5. Rubber vs Other Flooring Materials
Rubber vs Carpet
Carpet absorbs sweat and bacteria, traps chalk and dust, provides zero impact protection, slides under racks, frays under dragged equipment and becomes a permanent health hazard within 6–12 months. Carpet is not a viable gym flooring solution in any scenario.
The fix: If you have a carpeted room you want to convert into a home gym, lay 15mm rubber tiles directly over the existing carpet without removing it. The rubber's weight holds it in place, the carpet acts as additional sound dampening, and your carpet stays protected underneath for room reconversion later.
Rubber vs Vinyl Planks (LVP)
Vinyl planks tear under dropped weights, compress permanently under power racks, lift and warp in heat, and become slippery when wet from sweat. Vinyl belongs in kitchens and bathrooms, not gyms.
The fix: Same approach — lay 15mm rubber tiles directly over the vinyl. The rubber's mass keeps the floor stable, the vinyl stays undamaged underneath.
Rubber vs Artificial Turf
Turf and rubber are complementary, not competitive. Turf excels for sled pushing, prowler work and sprint drills; rubber excels for lifting and machines. The best PT studios combine both — rubber as the primary floor with a dedicated 1–2 metre turf lane along one wall.
Rubber vs Bare Concrete
Training directly on bare concrete is the worst flooring decision a gym owner can make. Australian garage concrete is typically only 100mm thick with light reinforcement — adequate for cars and storage, but not engineered to absorb the point-load impacts of dropped barbells. Without rubber, your slab cracks, your equipment wears 2–3× faster, your joints suffer, and the noise carries through the building.
Bare concrete is the cause of more home gym injuries, broken equipment and cracked slabs than every other flooring problem combined. Rubber is mandatory, not optional.
Need help choosing the right thickness?
Our Sydney-based team will calculate quantities, recommend the right tile, and quote freight to your location — all in a 10-minute call.
9. Best Flooring for Home Gyms
The best flooring for an Australian home gym is premium 15mm vulcanised rubber tile in 1m × 1m format. This thickness is the proven sweet spot for home use — thick enough to protect concrete subfloors and reduce impact noise into the rest of the house, dense enough to provide stable footing under racks and barbells, yet cost-effective enough to floor an entire double garage for under the price of a single power rack.
The home gym is the largest single category of flooring buyer in Australia, and the requirements have a clear pattern. A typical home gym contains a power rack or half rack, an adjustable bench, a barbell with 80–180kg of plates, dumbbells up to 40kg, and occasionally cardio equipment. This mix is exactly what 15mm rubber is engineered for.
Premium 15mm Black Rubber Gym Tile
Engineered from high-density vulcanised SBR/EPDM rubber. The Australian industry standard for home gyms, garages and PT studios. Handles power racks, dumbbells to 40kg and controlled barbell work.
Premium 15mm White Fleck Rubber Tile
The clean, contemporary aesthetic upgrade. Same commercial-grade SBR/EPDM construction as the black tile, with subtle white EPDM flecks that conceal chalk dust and elevate the look of any home gym.

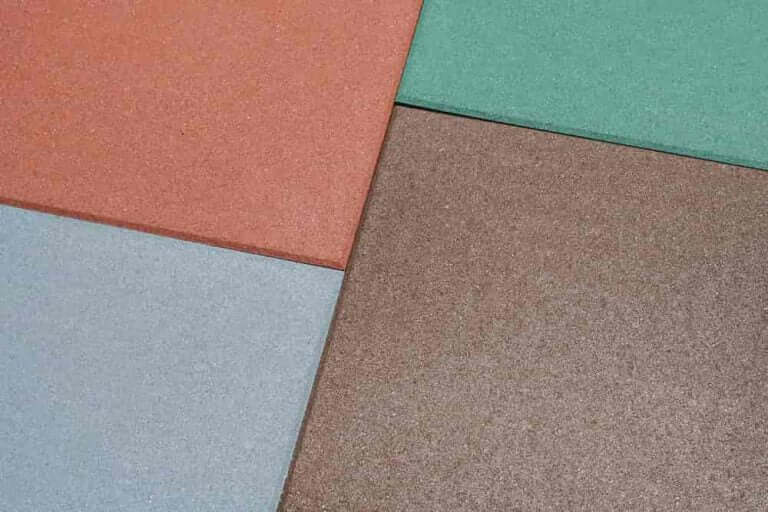

Premium 15mm Coloured Rubber Tiles
Five bold colours — green, blue, brown, grey and red — for colour-coded training zones. Mix and match to create professional cardio, weights and stretching areas. Same premium 15mm specification.
Quick Sizing Guide
- Single garage (3m × 5.4m = 16.2m²): 18 tiles of 15mm including 10% overage
- Double garage (5.4m × 5.4m = 29.2m²): 33 tiles of 15mm
- Spare bedroom (3m × 4m = 12m²): 14 tiles of 15mm
If you are on the borderline between 15mm and 20mm, here is the test: Do you drop your deadlifts on every rep, or do you lower them under control? Controlled lowering means 15mm is right. Habitual drops mean step up to 20mm.
10. Best Flooring for Commercial Gyms
The best flooring for an Australian commercial gym is 15mm premium rubber across general training areas, with 20mm in dedicated free-weight zones and 30–50mm under any Olympic lifting platforms. Commercial gym flooring must meet fire-rating compliance, low-VOC certification, and provide a 10–15 year service life under multi-user daily use.
Commercial gym flooring differs from home gym flooring in three ways: regulatory compliance, traffic intensity, and warranty expectations. A 24/7 commercial gym in Sydney sees more impact events in a single week than a home gym sees in a year.
The industry-standard product is our Commercial 15mm Black with White Fleck Rubber Tile — Australia's most popular commercial floor. The 62 Shore A hardness and 300kg static load rating handles daily commercial use across racks, functional trainers, Smith machines, barbells and heavy dumbbells. Each tile carries a full Material Data Safety Document (MDSD) confirming low-VOC, non-toxic, fire-rated commercial-grade specification.
Typical 350m² Commercial Gym Floor Plan
- 250m² of 15mm tiles across cardio, machines and general training
- 60m² of 20mm tiles across the free-weights zone
- 40m² of 50mm Armadillo Armoured Silencer under the Olympic lifting platforms
For commercial fit-outs, always order 10–15% overage rather than 10%. Commercial installations involve more obstacles (drains, pillars, irregular walls) and replacement tiles ordered later may show colour batch variation against the original install.
11. Best Flooring for Power Racks, Smith Machines & Functional Trainers
The best flooring under power racks, Smith machines and functional trainers is 15mm premium rubber tile. The 300kg static load rating supports any home or commercial frame; the textured surface prevents the rack from sliding under lateral loads; and the rubber's compressive give protects the frame feet from concrete contact damage.
Critically, 15mm rubber does not require bolting the rack down in most home and commercial applications. The combination of the rack's weight, the rubber's high friction coefficient and the static load distribution across the four feet keeps the rack stable for controlled lifting up to the tile's rated 300kg static load.
A loaded power rack with 200kg on the safety arms and a 100kg lifter inside distributes approximately 75kg through each foot — well within the 15mm tile's rating. The same setup with weighted plates stored on the uprights (an additional 200kg) distributes approximately 125kg per foot — still within rating.
Functional trainers like the popular G6S and G3S all-in-one machines exert lower point-loads than free-weight power racks but generate more lateral force through cable resistance. The high-friction 15mm surface prevents the entire machine from "walking" across the floor under aggressive cable rowing or lat pulldown movements.
15mm rubber is the correct thickness under power racks, Smith machines and functional trainers — no need to over-spec to 20mm unless the same flooring also handles habitual barbell drops.
14. Best Flooring for Olympic Weightlifting
The best flooring for Olympic weightlifting (snatch, clean and jerk, overhead drops) is 50mm rubber tile in a dedicated platform area, with surrounding general flooring of 15mm or 20mm. Olympic weightlifting routinely drops 100–200kg+ barbells from overhead, generating impact forces that destroy lighter flooring within months.
Olympic weightlifting is the most demanding application for gym flooring. A 150kg clean-and-jerk dropped from overhead generates approximately 4,500 newtons of peak force at impact — roughly 4.5× the force of an equivalent deadlift dropped from hip height.
Armadillo Armoured Silencer 50mm
The most heavy-duty rubber gym flooring available in Australia. 3× thicker than standard commercial flooring — engineered for Olympic platforms, upper-level weight rooms, apartment gyms with weight drops, and any environment where 200–300kg barbell drops are routine.
Standard Olympic Platform Build
A standard Olympic lifting platform is 2.4m × 3m = 7.2m². Built with 50mm Armadillo tiles (each 0.5m²), this requires 16 tiles including 10% overage. Surrounding floor in 15mm provides a cost-effective transition zone.
If you are setting up a home weightlifting platform, the 50mm requirement applies only to the drop zone (approximately 1.5m × 2.5m). Saving on flooring by extending 15mm tiles right under the drop zone is the most common — and most expensive — mistake in home weightlifting setups.
Olympic weightlifting requires 50mm flooring in the drop zone. There is no shortcut, no premium 15mm alternative, no creative substitution. Olympic loads require Olympic flooring.
15. Best Flooring for CrossFit
The best flooring for CrossFit boxes and home CrossFit setups is 15mm premium rubber across the main training floor with 20mm or 50mm in dedicated barbell drop zones. CrossFit's mix of barbell lifts, gymnastic movements, kettlebell work and conditioning makes a single-thickness approach inadequate for serious facilities.
CrossFit is uniquely demanding because a single WOD might combine 20 overhead squats, 30 box jumps, 40 burpees and 50 wall balls — each generating different impact patterns on the floor.
Typical 200m² CrossFit Affiliate Floor Plan
- 140m² of 15mm rubber across the main training floor
- 40m² of 20mm rubber in the free-weight area
- 20m² of 50mm Armadillo Armoured Silencer in the Olympic platform zone
16. Best Flooring for PT Studios
The best flooring for personal training studios is 15mm premium coloured rubber in zoned colour coding. PT studios serve a varied client base across the same floor space, and colour-coded zones in 15mm provide both the performance and the professional aesthetic clients respond to.
A successful PT studio colour-coding scheme:
- Green zone — stretching, mobility, warm-up
- Blue zone — cardio, conditioning, HIIT
- Red zone — weights, strength training
- Grey zone — walkways and transitions
17. Best Flooring for Garage Gyms
The best flooring for an Australian garage gym is 15mm premium rubber tile. Australian garage concrete is typically only 100mm thick with light reinforcement — adequate for cars and storage but inadequate for repeated impact, making 15mm rubber the essential protection layer.
The Australian garage gym faces challenges that indoor home gyms do not: wide temperature swings (5°C winter mornings to 50°C+ summer afternoons), sloped concrete (most slabs are sloped 1–2° toward the door for drainage), roller door air gap and concrete dust from vehicle storage.
Premium 15mm vulcanised rubber handles all four challenges. Vulcanisation provides dimensional stability across the temperature range. The high mass per tile (approximately 18kg per 1m² tile) keeps tiles seated despite the slab slope. The non-porous surface seals against humidity. And the rubber floor itself eliminates concrete dust at source.
For garages with significant slope (>2°), plan the tile layout so the seams run perpendicular to the slope direction. This prevents tiles from "creeping" downhill over time under heavy lateral loads.
18. Best Flooring for Schools
The best flooring for school gyms, weight rooms and PE facilities is 15mm premium rubber with low-VOC certification and full fire-rating documentation. Schools have heightened compliance requirements around indoor air quality and fire safety that make MDSD-documented commercial flooring essential.
Australian schools operate under strict procurement requirements. Gym flooring must typically provide low-VOC certification, fire safety documentation (flash point >200°C), non-toxic certification, full Material Data Safety Document (MDSD), and slip-resistance specification. Our premium 15mm range meets all five requirements with documentation provided at order.
19. Best Flooring for Apartment Gyms
The best flooring for apartment gyms in Australian strata buildings is 20mm premium rubber, or 50mm Armadillo Armoured Silencer if any weight-dropping is involved. Apartment lifting is overwhelmingly limited by noise transmission to lower-level neighbours, and only thicker rubber tiles deliver the vibration dampening required to make it viable.
Premium 20mm Black Rubber Mat
For serious lifters, apartment gyms and commercial free-weight zones. The premium 20mm thickness delivers outstanding impact protection for heavy barbell drops, vehicles, power racks and high-impact conditioning equipment.
15mm rubber handles general apartment cardio and bodyweight training. 20mm becomes necessary for any free-weight training where dumbbells, kettlebells or barbells are returned to the floor. 50mm Armadillo Armoured Silencer becomes essential if you plan to drop weights at all.
Apartment training requires the strata committee on side, not just the right flooring. Document your flooring spec (manufacturer, thickness, density, dB reduction) and proactively share it with your committee before complaints arise.
20. Indoor vs Outdoor Gym Flooring
Indoor gyms use standard SBR-based rubber tiles which provide superior shock absorption but degrade rapidly under UV exposure. Outdoor gyms require EPDM-topped tiles with UV stabilisation, which resist fading, cracking and surface degradation in Australian sun and weather.
The Australian climate punishes outdoor flooring uniquely hard. Surface temperatures on north-facing concrete reach 60°C+ in summer, UV intensity is among the highest on Earth, and rainfall combined with humidity drives material breakdown.
What Happens to Standard SBR Tiles Outdoors
- Fade from black to grey within 6–12 months
- Develop surface cracking within 18–24 months
- Begin pitting where rubber granules degrade
- Lose 30–40% of structural integrity within 3 years
Premium EPDM 15mm Rubber Tile
UV-stabilised EPDM top layer over an SBR impact-absorbing base. Will not fade, crack or grey out in 40°C Australian heat. The only gym flooring rated for outdoor, semi-outdoor and uncovered garage use.
21. EPDM vs SBR Rubber Flooring
SBR (Styrene-Butadiene Rubber) is recycled tyre rubber bonded with PU binder — the industry-standard indoor gym flooring, offering excellent shock absorption and low cost. EPDM (Ethylene Propylene Diene Monomer) is a virgin synthetic rubber compound — denser, more durable, UV-resistant and non-porous, ideal for outdoor, premium indoor and high-aesthetic applications. The best modern tiles combine both: SBR base for impact absorption topped with EPDM for surface durability.
| Property | SBR | EPDM | SBR/EPDM Combo |
|---|---|---|---|
| Material source | Recycled tyres | Virgin synthetic | Both |
| Cost | Lowest | Highest | Mid-premium |
| Shock absorption | Excellent | Good | Excellent |
| UV resistance | Poor | Excellent | Excellent |
| Non-porous surface | No | Yes | Yes (top) |
| Odour | Higher | Minimal | Low |
| Lifespan | 10+ years indoor | 15+ years outdoor | 12–15 years |
| Best use | Indoor home/commercial | Outdoor / premium | Premium commercial |
22. What Thickness Gym Flooring Should You Buy?
Choose your gym flooring thickness based on your heaviest activity, not your average activity. 10mm suits cardio and yoga zones only. 15mm is the Australian industry standard for home gyms, PT studios and general commercial floors. 20mm is recommended for heavy free-weight zones and apartments. 30–40mm is for specialised heavy-drop areas. 50mm is the only correct specification for Olympic lifting platforms.
| Thickness | Best For | Max Drop Load | Static Load | Weight per m² |
|---|---|---|---|---|
| 10mm | Light cardio, yoga, kids zones | No drops | 200kg | ~12kg |
| 15mm ⭐ | Home gyms, PT studios, general commercial | Controlled 60kg | 300kg | ~18kg |
| 20mm | Heavy free weights, apartment gyms | Drops to 120kg | 400kg+ | ~24kg |
| 30mm | Drop zones, second-floor gyms | Drops to 160kg | 500kg+ | ~36kg |
| 40mm | Heavy drop zones | Drops to 200kg | 600kg+ | ~48kg |
| 50mm 🏋️ | Olympic lifting platforms | Drops 300kg+ | 800kg+ | ~60kg |
The 15mm Rule of Thumb
If you cannot decide, choose 15mm. It is the right answer for the vast majority of Australian buyers, it has the strongest competitive pricing per square metre, and it handles the largest range of equipment safely.
"Step-Up" Triggers
Move from 15mm to 20mm when any of these apply:
- You train above ground floor in a shared building
- You drop barbells on every set rather than lowering
- Your bumper plates total more than 140kg
Move to 50mm Armadillo only when these apply:
- You perform Olympic lifts (snatch, clean and jerk) at meaningful loads
- You train above ground floor with weight drops
- You are building a dedicated Olympic platform
23. Gym Flooring Installation Guide
Premium 1m × 1m × 15mm rubber tiles install as a loose-lay floating floor — no adhesive required in 95% of installations. The high mass of each tile (approximately 18kg per 1m² at 15mm, 24kg at 20mm) holds the floor in place against equipment weight, lateral force and temperature movement. Installation requires only a Stanley knife, straight edge, tape measure and 24 hours of acclimatisation time.
Step-by-Step Installation
Step 1: Acclimatise the tiles (24 hours). Leave the stacked tiles in the installation room for 24 hours before laying. This allows rubber to reach ambient temperature, preventing future expansion gaps.
Step 2: Clean the subfloor. Sweep and vacuum the concrete or timber subfloor. Remove any sharp debris that could damage the underside of the rubber.
Step 3: Plan the layout. Start tile placement from the most visible corner (typically the entrance side) and work toward less visible edges. This puts cut tiles against walls where they are less noticeable.
Step 4: Lay the first row. Place full tiles flush against the two starting walls. Push tiles tightly against each other — do not leave intentional expansion gaps.
Step 5: Continue rows in brick-bond pattern. Stagger the seams between rows by half a tile (50cm offset). This creates a stronger floor that resists lateral creep under load.
Step 6: Cut edge tiles. Measure carefully, mark with chalk or pen, and cut from the underside (smoother) face with a sharp Stanley knife. Score deeply with multiple passes rather than attempting a single cut.
Step 7: Final inspection. Walk the entire floor checking for raised seams, gaps or movement.
When to Use Adhesive
| Situation | Adhesive Needed? |
|---|---|
| Home gyms with stationary equipment | ✗ No |
| Commercial gyms with general use | ✗ No |
| Floor area larger than 15m² | ✗ No |
| Floors smaller than 8m² | ✓ Recommended |
| Outdoor installations (wind exposure) | ✓ Recommended |
| Severe subfloor slope (>3°) | ✓ Recommended |
| Heavy sled-pulling zones | ✓ Recommended |
24/7 Gym Equipment offers professional Sydney metro installation at competitive rates per square metre. Our team handles cutting around equipment, ramped edges, drains and irregular walls — typically completing a 30m² installation in a single day.
24. How to Calculate Flooring Quantities
Measure your space in metres (length × width), multiply to get total square metres, then add 10% for cuts and waste. Premium 1m × 1m tiles make this calculation simple — your square metre total is identical to your tile count (before adding overage).
Formula: Length (m) × Width (m) × 1.10 = Tiles required
Quick Reference Table
| Room Size | Square Metres | Tiles Required (incl. 10%) |
|---|---|---|
| 2m × 2m (compact spare room) | 4m² | 5 tiles |
| 3m × 3m (single bedroom) | 9m² | 10 tiles |
| 3m × 4m (large bedroom) | 12m² | 14 tiles |
| 3m × 5.4m (single garage) | 16.2m² | 18 tiles |
| 4m × 5m (small studio) | 20m² | 22 tiles |
| 5m × 5m (medium studio) | 25m² | 28 tiles |
| 5.4m × 5.4m (double garage) | 29.2m² | 33 tiles |
| 5m × 8m (large studio) | 40m² | 44 tiles |
| 6m × 10m (small commercial) | 60m² | 66 tiles |
| 8m × 10m (medium commercial) | 80m² | 88 tiles |
| 10m × 15m (large commercial) | 150m² | 165 tiles |
Olympic Platform Calculation
A standard Olympic lifting platform is 2.4m × 3m = 7.2m². Using 50mm Armadillo tiles (each 0.5m²), this requires 7.2 ÷ 0.5 = 14.4 tiles + 10% overage = 16 tiles.
If your space is genuinely a clean rectangle with no obstacles, 10% overage is sufficient. If there are any complications — drains, pillars, walls at non-90° angles — order 12–15% overage. The cost of ordering one extra tile is trivial compared to the freight cost of a single replacement tile later.
Not sure how many tiles you need?
Send us your room dimensions via WhatsApp and we'll calculate it for you in minutes — including freight cost to your address.
25-26. Maintenance & Cleaning
Premium rubber gym flooring requires minimal maintenance. Clean with warm water and a few drops of neutral pH detergent (dish soap) via damp microfibre mop. Avoid solvents, bleach, abrasive scrubbers and steam cleaners — all of which damage vulcanised rubber.
The Four-Tier Maintenance Schedule
| Frequency | Tasks | Time |
|---|---|---|
| Daily | Sweep loose chalk/dust; wipe sweat puddles; visual scan | 5 min |
| Weekly | Damp mop with warm water and detergent | 15 min |
| Monthly | Full floor mop; lift equipment and clean underneath | 30 min |
| Biannual | Inspect every seam; rotate worn tiles; re-secure edge adhesive | 1 hour |
What NOT to Do
- ❌ No solvents — paint thinner, acetone, citrus cleaners dissolve the PU binder in SBR tiles
- ❌ No steam cleaning — extended high heat softens vulcanised rubber
- ❌ No flooding — water under tiles can stagnate against the subfloor
- ❌ No undiluted bleach — lifts surface colour of coloured tiles
- ❌ No wax — eliminates the slip-resistant texture
Stain-Specific Removal
| Stain | Removal Method |
|---|---|
| Chalk | Dry sweep, then standard wet mop |
| Sweat | Standard wet mop is sufficient |
| Blood | Diluted hydrogen peroxide (3%), wipe immediately |
| Pre-workout spills | Warm water + dish soap, wipe within hours |
| Rust marks | Diluted white vinegar (1:10), test in corner first |
| Black scuff marks | Pencil eraser or tennis ball, then wet mop |
27. The 7 Most Common Gym Flooring Mistakes
Avoiding seven common mistakes covers 95% of flooring problems Australian gym owners experience: buying foam instead of rubber, under-specifying thickness, over-specifying thickness, skipping acclimatisation, ignoring subfloor preparation, using wrong cleaning chemicals, and forgetting Olympic platform requirements.
- Buying EVA foam jigsaw mats — Foam compresses, tears and fails in any serious training environment. This is the #1 buyer mistake.
- Under-specifying thickness — Using 10mm or 12mm tiles where 15mm or 20mm is required, particularly under power racks or in drop zones.
- Over-specifying thickness — Buying 20mm "to be safe" when 15mm is correct. Wastes money, makes installation harder, provides no measurable benefit for general training.
- Skipping acclimatisation — Installing tiles within hours of delivery. Result: gaps or buckling within weeks.
- Ignoring subfloor preparation — Laying tiles over a dirty, uneven or contaminated subfloor damages the tile underside.
- Using wrong cleaning chemicals — Citrus solvents and aggressive degreasers dissolve the PU binder.
- Forgetting Olympic platform requirements — Attempting Olympic lifting on 15mm tiles. The tiles wear through in months; the subfloor takes the impact damage anyway.
28. Gym Flooring Cost Guide Australia
Australian gym flooring costs vary dramatically by thickness, quality and quantity. Premium 15mm vulcanised tiles sit in the mid-range, 20mm and 50mm specialist tiles at the premium end. Total fit-out costs for a typical home gym range from $800 (small spare room) to $3,500+ (double garage with Olympic platform).
Total Fit-Out Budget Examples
| Project | Tile Spec | Tiles | Approx. Budget |
|---|---|---|---|
| Spare bedroom home gym | 15mm Premium Black | 14 | $700–$1,000 |
| Single garage home gym | 15mm Coloured | 18 | $900–$1,300 |
| Double garage home gym | 15mm White Fleck | 33 | $1,650–$2,400 |
| Double garage + Olympic platform | 15mm + 16× 50mm | 49 | $3,000–$4,200 |
| Small PT studio | 15mm Coloured mixed | 60 | $3,000–$4,400 |
| Medium commercial gym | Mixed 15/20/50mm | 200+ | $12,000–$20,000 |
| Large CrossFit affiliate | Mixed 300m²+ | 350+ | $20,000–$35,000 |
Figures indicative only — contact 24/7 Gym Equipment for current pricing and a delivery quote to your address.
29. The 5-Question Buyer's Decision Guide
Answer these five questions and you'll know exactly what to buy in under five minutes:
Question 1: What's the heaviest thing you'll regularly drop?
- Nothing heavier than 40kg dumbbells → 15mm
- 40–140kg barbells with controlled lowering → 15mm
- 40–140kg barbells with regular drops → 20mm
- 140kg+ barbells dropped from overhead (Olympic) → 50mm Armadillo
Question 2: Where is the gym?
- Stand-alone shed or detached garage → Any thickness, no extra requirements
- Ground floor of family home → 15mm minimum for noise
- Second floor of multi-storey home → 20mm minimum
- Apartment, strata, shared building → 20mm minimum; 50mm if dropping weights
Question 3: Indoor or outdoor?
- Indoor only → SBR or SBR/EPDM combo
- Direct sunlight through windows → SBR/EPDM combo
- Outdoor or covered outdoor → Full EPDM
Question 4: How big is the space?
- Under 8m² → Consider adhesive for stability
- 8m²+ → Floating install, no adhesive needed
Question 5: Colour requirements?
- Single colour → Premium Black or Black with White Flecks
- Colour zones for PT studio → Premium Coloured range
- Premium home gym aesthetic → White Fleck or coloured
Why Buy Gym Flooring from 24/7 Gym Equipment?
- ✅ Specialist gym equipment supplier — not a generic flooring importer
- ✅ Sydney warehouse with national distribution — Milperra NSW dispatches Australia-wide
- ✅ Sydney showroom — inspect tiles in person at 10/202 Milperra Road, Mon–Fri 9–5, Sat 9–1
- ✅ Brisbane, Melbourne, Adelaide & Canberra depot pickup — for orders over $2,500
- ✅ Professional Sydney metro installation available
- ✅ Full compliance documentation — MDSD, fire certification, VOC reports
- ✅ Expert pre-sale advice — thickness, quantity, layout consultation
- ✅ Commercial-grade warranty against premature failure
- ✅ Trusted by thousands of Australian lifters and gym owners
45+ Frequently Asked Questions
Click any question to expand the answer. Optimised for Google AI Overviews, ChatGPT, Claude and Gemini.
What is the best gym flooring for beginners?
The best gym flooring for beginners is premium 15mm vulcanised rubber tile in 1m × 1m format. This thickness handles all standard home gym training (power racks, dumbbells to 40kg, controlled barbell work, functional trainers) while staying within reasonable budget. 15mm is the Australian industry standard for home use.
Do I really need gym flooring or can I train on concrete?
Yes, you need gym flooring. Training on bare concrete damages your subfloor (cracking within 6–18 months), your equipment (3× faster wear), your joints (acoustic shock transmission), and your relationships with neighbours (noise complaints). 15mm rubber solves all four problems.
What thickness gym flooring should I buy for a home gym?
For a typical Australian home gym, 15mm is the right thickness. It provides shock absorption for dumbbells and controlled barbell training, supports power racks up to 300kg static load, reduces noise transmission, and protects concrete or timber subfloors. Step up to 20mm only if you regularly drop heavy barbells.
How much gym flooring do I need?
Measure your space length × width in metres, then add 10% for cuts and waste. With 1m × 1m tiles, your tile count equals your square metre total plus 10%. A typical Australian double garage (5.4m × 5.4m = 29.2m²) requires 33 tiles.
How long does gym flooring last?
Premium 15mm vulcanised rubber tiles last 10+ years in a typical home gym and 8–12 years in commercial use. Premium 50mm Olympic tiles last 15+ years even under daily heavy lifting. Cheap foam or budget rubber rarely exceeds 24 months in any serious training environment.
What flooring do commercial gyms use?
Commercial gyms use 15mm premium rubber tiles as the main training floor, with 20mm in dedicated free-weight zones and 30–50mm under Olympic lifting platforms. All tiles must carry full MDSD documentation, fire rating and low-VOC certification.
Is rubber gym flooring fire-rated?
Yes, premium rubber gym flooring from established Australian suppliers carries full fire certification. The 15mm and 20mm premium range at 24/7 Gym Equipment features a flash point above 200°C and auto-ignition above 350°C, meeting Australian commercial fit-out requirements.
Is gym flooring low-VOC for indoor use?
Yes, premium gym flooring is low-VOC certified. The premium SBR/EPDM tiles emit ≤0.5 mg/m²/hr of VOCs, well within indoor air quality requirements for enclosed home gyms, apartments, PT studios and commercial facilities.
How much does commercial gym flooring cost in Australia?
Commercial gym flooring costs vary by thickness and quantity. A typical 100m² commercial gym floor in 15mm premium rubber sits in the mid-range; mixed-thickness layouts including 20mm and 50mm zones cost more. Contact 24/7 Gym Equipment for bulk fit-out pricing on commercial projects.
Do I need adhesive to install gym flooring?
No, premium 15mm and 20mm tiles install as a floating floor without adhesive in 95% of installations. The high mass per tile (18kg at 15mm, 24kg at 20mm) holds the floor in place. Use adhesive only for floors under 8m², outdoor installations, or severely sloped subfloors.
How long does it take to install gym flooring?
A typical 30m² floor installs in 4–6 hours with two people. A single-garage home gym (16m²) installs in 2–3 hours. Commercial fit-outs use professional installers who complete around 50m² per day per crew.
Do I need professional installation?
No, premium 1m × 1m tiles are designed for DIY installation. Professional installation is recommended for floors over 30m² with obstacles (drains, pillars, irregular walls), or for commercial fit-outs requiring documented installation certification. 24/7 Gym Equipment offers Sydney metro installation.
Can I install gym flooring over carpet?
Yes, premium rubber tiles install successfully directly over existing carpet without removal. The carpet acts as additional sound dampening, the rubber's weight holds it in place, and the carpet stays protected underneath for room reconversion later.
Can I install gym flooring over vinyl, tiles or timber?
Yes, premium rubber tiles install over any reasonably level subfloor including vinyl planks, ceramic tiles, timber boards or polished concrete. No adhesive is required for most installations on these substrates.
Do I need to acclimatise tiles before installing?
Yes, leave stacked tiles in the installation room for 24 hours before laying. This allows the rubber to reach ambient temperature and humidity, preventing future expansion gaps or buckling.
What tools do I need to install gym flooring?
You need: a sharp Stanley knife with spare blades, a straight edge (1m+ metal ruler or aluminium straight edge), tape measure, chalk or marker pen, and gloves. No power tools required.
How do I clean gym flooring?
Clean gym rubber flooring with warm water and a few drops of neutral pH detergent (dish soap) applied via damp microfibre mop. Avoid solvents, bleach, abrasive scrubbers and steam cleaners which damage vulcanised rubber over time.
How often should I clean gym flooring?
Daily sweep, weekly damp mop, monthly deep clean, biannual seam inspection. This schedule delivers 10+ years of service from premium tiles. Commercial gyms require twice-daily spot cleaning and daily wet mopping in high-traffic zones.
Can I steam clean gym flooring?
No, do not steam clean rubber gym flooring. Extended high-temperature exposure softens vulcanised rubber, accelerates surface wear and can lift the bond between the SBR base and EPDM top layer on premium tiles.
Can I use bleach on gym flooring?
Avoid undiluted bleach on rubber gym flooring. It lifts surface colour from coloured tiles and degrades the PU binder in SBR tiles. For blood spills, use 3% hydrogen peroxide wiped immediately.
Is gym flooring slip-resistant?
Yes, premium rubber gym flooring features a textured matte surface that provides reliable slip resistance for heavy lifting, HIIT, functional training and Olympic movements — including when wet from sweat. The micro-texture is engineered into the tile during vulcanisation.
Is gym flooring non-toxic and safe for indoor use?
Yes, premium rubber gym flooring is low-VOC certified and non-toxic. The 15mm and 20mm premium range from 24/7 Gym Equipment is supported by full Material Data Safety Documentation (MDSD) confirming safe enclosed indoor use.
Does gym flooring smell?
Premium tiles have a minimal rubber odour that dissipates within 48–72 hours after installation. Cheap budget tiles often have a strong rubber smell that persists for weeks — a sign of inadequate vulcanisation and excess VOC content.
Is gym flooring safe for kids?
Premium low-VOC rubber gym flooring is safe for shared home gyms used by children. EVA foam jigsaw mats are more appropriate for dedicated children's play areas under 5 years old.
What flooring do I need for Olympic weightlifting?
Olympic weightlifting requires 50mm rubber tile in a dedicated platform area. The Armadillo Armoured Silencer 50mm tile is the only correct specification for routinely dropping 100–200kg+ barbells from overhead. Surrounding general floor can be 15mm or 20mm.
What flooring do I need for CrossFit?
CrossFit requires mixed-thickness flooring: 15mm premium rubber across the main training floor, 20mm in heavy free-weight zones, and 50mm in dedicated barbell drop platforms. Single-thickness CrossFit setups either over-spec (50mm everywhere) or under-spec (15mm under Olympic drops).
Can I deadlift on 15mm rubber flooring?
Yes, 15mm rubber handles deadlifts up to approximately 140kg with controlled lowering. For habitual deadlift drops or loads above 140kg, step up to 20mm. For Olympic-style barbell drops from height, 50mm is the correct specification.
What flooring do I need under a power rack?
15mm premium rubber tile is the correct specification under power racks. The 300kg static load rating supports any home or commercial rack, the textured surface prevents rack sliding, and the rubber's compressive give protects the rack feet from concrete contact damage.
Does gym flooring reduce noise?
Yes, premium rubber gym flooring significantly reduces impact noise transmission. 15mm tiles reduce impact noise to lower-level rooms by approximately 18–22 decibels — converting an audible "thud" into a faint muffled vibration.
Can I have a home gym in an apartment?
Yes, with the right flooring. Apartment home gyms require 20mm rubber minimum, and 50mm Armadillo Armoured Silencer if weight-dropping is involved. Provide your strata committee with manufacturer specifications proactively.
Will my neighbours hear me lifting on rubber flooring?
Premium 20mm and 50mm rubber flooring dramatically reduce structure-borne sound transmission to neighbours. 15mm rubber reduces but does not eliminate impact noise. For complete confidence in strata buildings, 50mm Armadillo is the gold standard.
What's the quietest gym flooring?
The quietest gym flooring is 50mm Armadillo Armoured Silencer tile — engineered specifically for vibration control in second-floor and apartment gyms. The 3× standard thickness provides the dampening required for routine Olympic-load drops without disturbing lower-level occupants.
How much does gym flooring cost per square metre in Australia?
Australian gym flooring costs vary by thickness, quality and quantity. Premium 15mm tiles sit in the mid-range; 20mm and 50mm specialist tiles command a premium. Contact 24/7 Gym Equipment for current per-tile and bulk fit-out pricing.
Does 24/7 Gym Equipment ship gym flooring Australia-wide?
Yes, 24/7 Gym Equipment ships gym flooring Australia-wide from the Sydney Milperra warehouse. Depot pickup is available in Melbourne, Brisbane, Adelaide and Canberra. Home delivery is quoted per order based on location and unloading method.
How is gym flooring delivered?
Premium gym flooring is delivered on pallets via commercial freight carriers. Each 1m × 1m × 15mm tile weighs approximately 18kg, so most orders require pallet delivery with forklift unloading (business address) or manual tail-lift unloading (residential).
Can I pick up gym flooring from a warehouse?
Yes, 24/7 Gym Equipment offers free pickup from the Milperra NSW warehouse Monday–Friday 9am–5pm and Saturday 9am–1pm. Brisbane, Melbourne, Adelaide and Canberra depot pickup is available for orders meeting minimum thresholds.
Can I use gym flooring outdoors?
For outdoor gym installations, choose EPDM-topped tiles rather than standard SBR. EPDM resists UV fading, surface cracking and weather degradation under Australian conditions. Standard SBR tiles fade and crack within 12–24 months in direct sunlight.
Will gym flooring fade in Australian sun?
Standard SBR rubber tiles fade from black to grey within 6–12 months under direct sun exposure. Premium EPDM-topped tiles are UV-stabilised and retain their colour for 5+ years even in full sun. Choose EPDM if any part of your floor sees direct sunlight.
Does gym flooring work in hot Australian garages?
Yes, premium vulcanised rubber tiles are dimensionally stable across the temperature range of Australian garages (5°C to 50°C+). The high mass per tile prevents lift or movement, and vulcanisation provides resistance to softening even on extremely hot days.
Does gym flooring absorb water?
Premium rubber gym flooring is non-porous on the surface, so sweat, chalk dust and spills sit on top and wipe clean. The closed cellular structure of vulcanised rubber prevents water retention or bacterial growth.
What's the difference between 15mm and 20mm gym flooring?
15mm rubber is the industry standard for home gyms, PT studios and general commercial use — handling weights training, functional training, cardio and HIIT. 20mm is recommended for dedicated Olympic weightlifting platforms, powerlifting gyms, apartment gyms with drops, and facilities where plates are regularly dropped from height.
What's the difference between EPDM and SBR gym flooring?
SBR (Styrene-Butadiene Rubber) is recycled tyre rubber bonded with PU binder — excellent shock absorption, lower cost, ideal for indoor use. EPDM (Ethylene Propylene Diene Monomer) is virgin synthetic rubber — UV-resistant, non-porous, more durable, ideal for outdoor and premium indoor applications. Many premium tiles combine an SBR base with an EPDM top layer.
Can gym flooring be moved or relocated?
Yes, premium floating-installed gym flooring can be lifted, transported and reinstalled in a new location. Each tile lifts individually, transports flat-stacked, and re-lays in the new space in the same brick-bond pattern. Re-acclimatise for 24 hours in the new location before laying.
Do I need edge ramps for gym flooring?
Edge ramps are not structurally required but significantly improve aesthetics, safety and access for trolleys or wheelchairs. Recommended for commercial gyms, PT studios, school facilities and any home gym where the rubber meets a non-flooring surface.
What is the warranty on premium gym flooring?
Premium tiles carry manufacturer warranties against premature cracking, delamination and colour defects. Specific warranty terms vary by product and use case — contact 24/7 Gym Equipment for warranty documentation on specific tiles.
Ready to Order Your Gym Flooring?
Australia's gym flooring specialists. Sydney showroom. Australia-wide delivery. Expert advice before you buy.
Visit Our Sydney Showroom
Inspect every tile in person, test the surface texture, and speak to our team face-to-face.
📍 10/202 Milperra Road, Milperra NSW 2214
📞 1300 247 888
💬 WhatsApp: +61 412 029 000
✉️ sales@247gymequipment.com.au
🕒 Mon–Fri 9am–5pm · Sat 9am–1pm
Australia-wide delivery to Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Gold Coast, Newcastle, Wollongong, Central Coast, and all regional NSW, VIC, QLD, SA, WA, ACT, NT and TAS.
