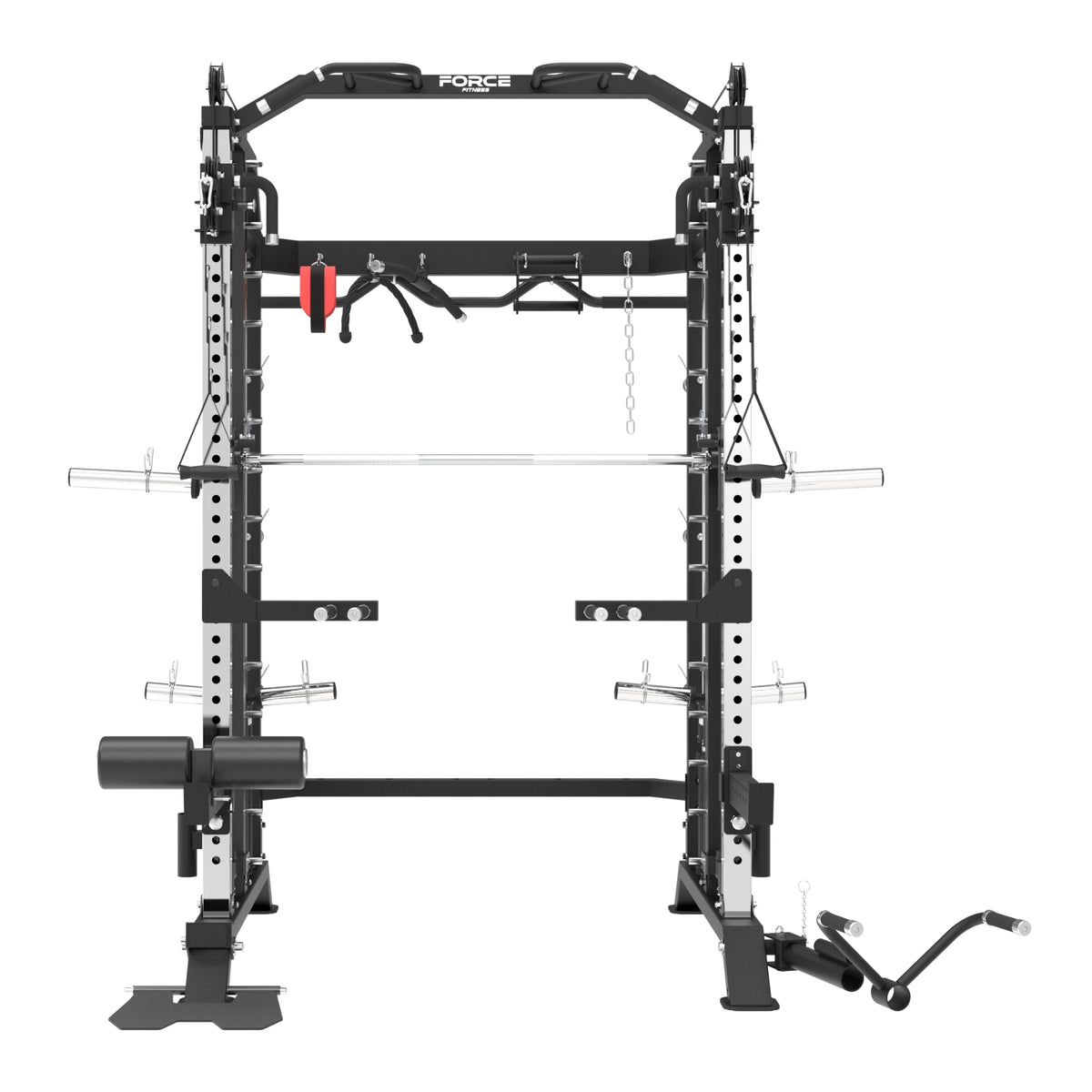

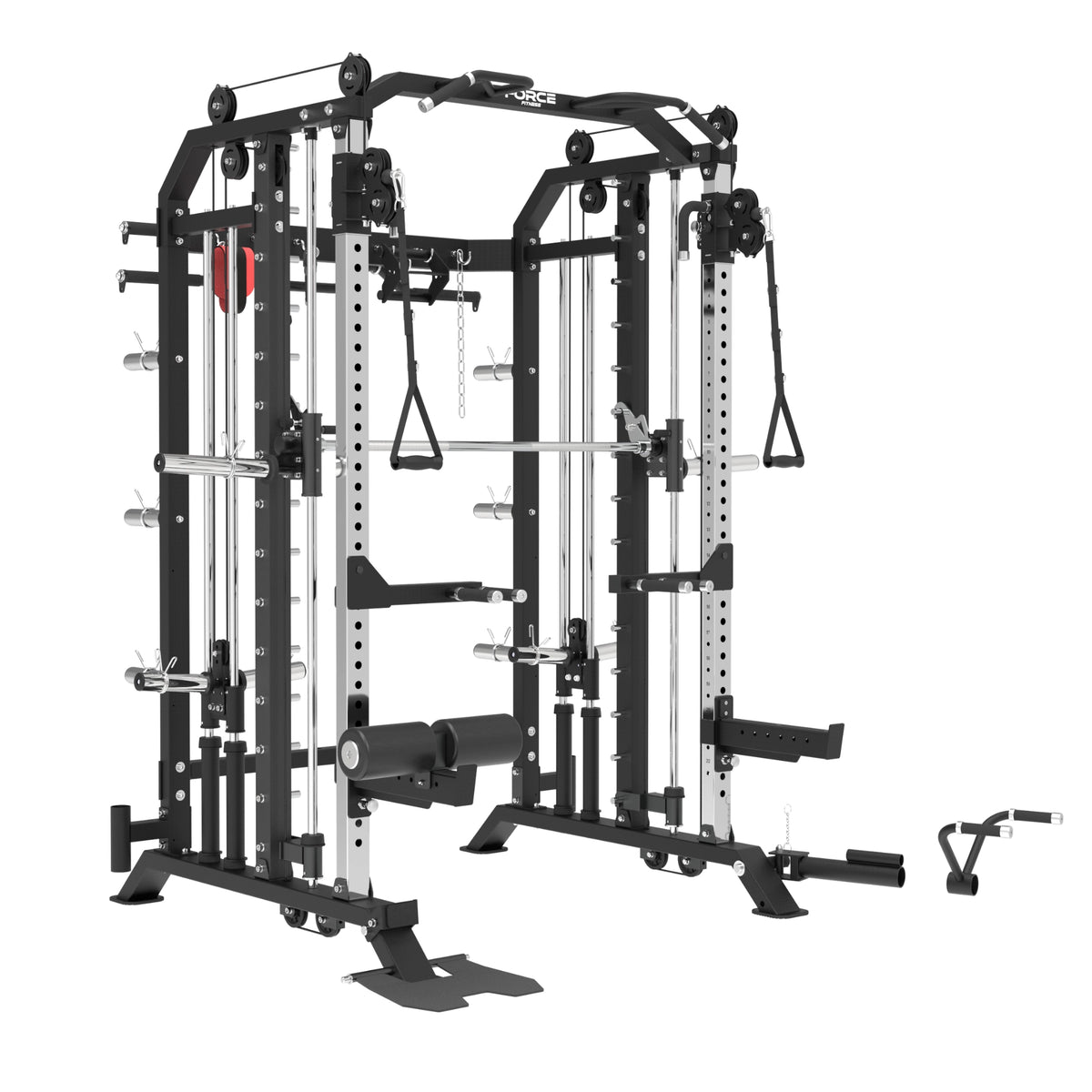

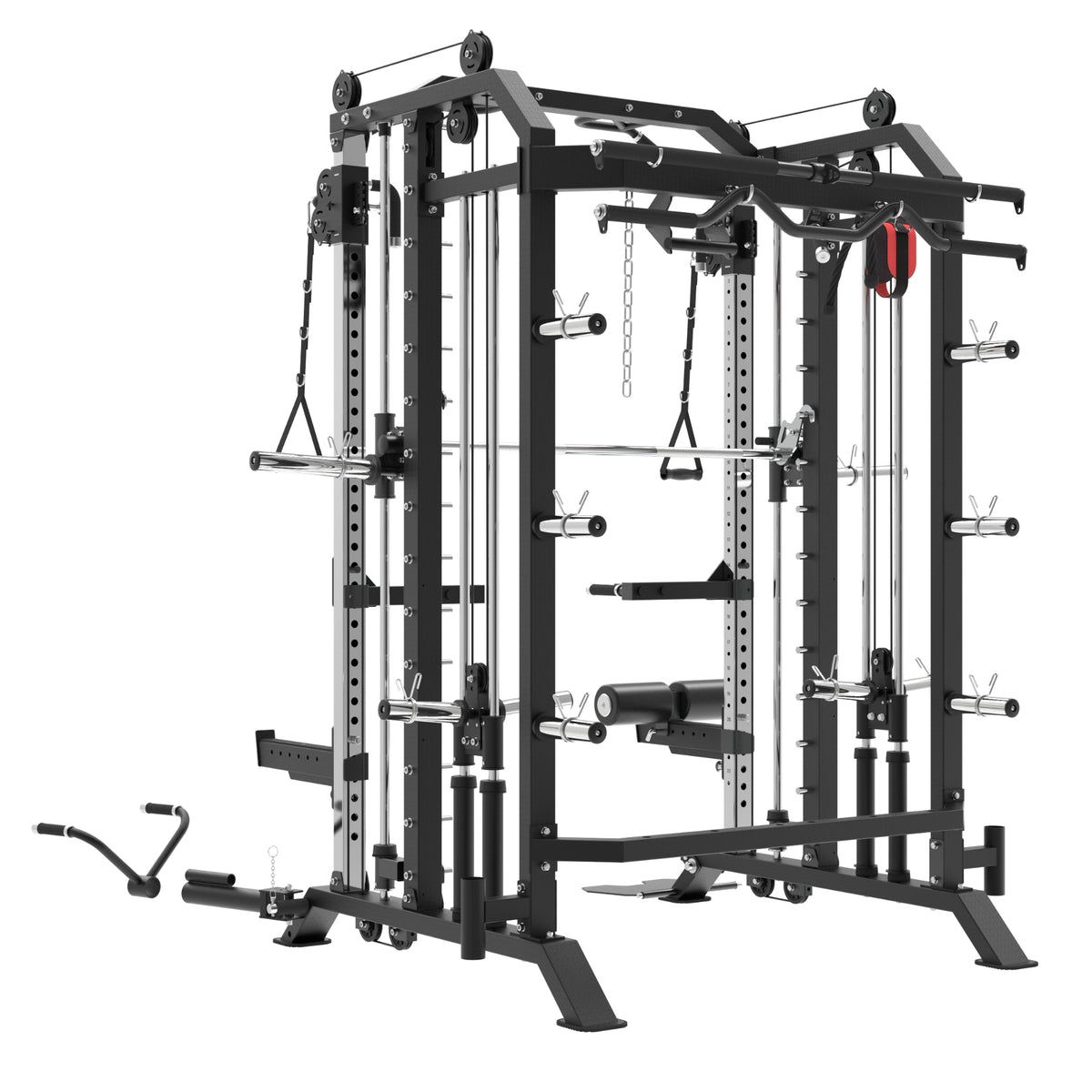

G7S Commercial Functional Trainer and Smith Machine (Plate Loaded)

$3,250.00

You can receive the package between October 13 and October 15

Fast delivery Same day dispatch
📦 Archerfield Brisbane Depot 📦 Derrimut Melbourne Depot
Ready for pick up in 1 business day
Increase must be a multiple of 1 Only 0 left in stock. Please reduce your quantity. Only 9 left in stock. Please reduce your quantity.

Note for personalization

New Arrival Plate Loaded 363kg Combined Rating 10 Year Frame Warranty

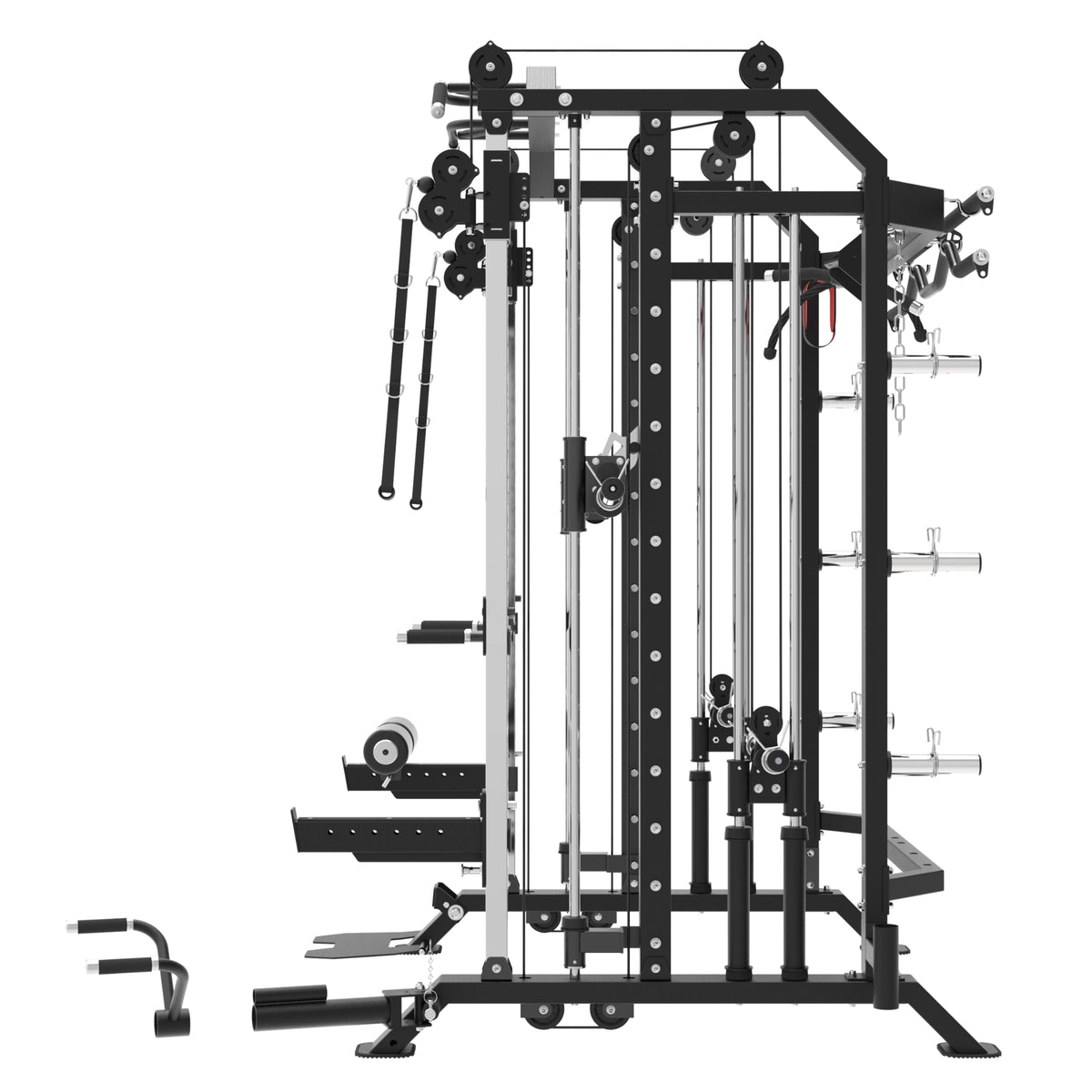

G7S Commercial Functional Trainer and Smith Machine (Plate Loaded)Plate loaded Smith machine, power rack and dual cable trainer in one frame

The G7S plate loaded functional trainer with Smith machine combines a Smith machine, power rack, dual adjustable cable trainer, multi-angle chin-up bar, lat pulldown and low row in one commercial-grade frame. It is designed for Australian home gyms, garage gyms, PT studios and commercial training floors that want a full strength setup without buying three separate machines.

Because the G7S uses plate loaded cable resistance instead of built-in weight stacks, you load your own Olympic plates onto chrome sleeves. That keeps the machine simpler than a selectorised system and lets resistance grow with your plate collection, within a maximum combined rated capacity of 363kg.

It is the heavier-duty step up from our G5S plate loaded functional trainer, with a larger frame and a wider attachment pack. Read on for the full inclusions, exercise list, specifications and delivery options, or compare all functional trainers and Smith machines.

363KGCombined Rated Capacity
350KGSmith Machine Capacity
252KGCable Station Load
10YRFrame Warranty

In the box

What Is Included With the G7S

🏗️
Smith Machine and Power Rack FrameIntegrated Smith bar, power rack uprights and dual cable towers
🔗
Cross-Over Pulley CablesDual height-adjustable pulleys, 2000lb tensile cable with cast pulleys
🦾

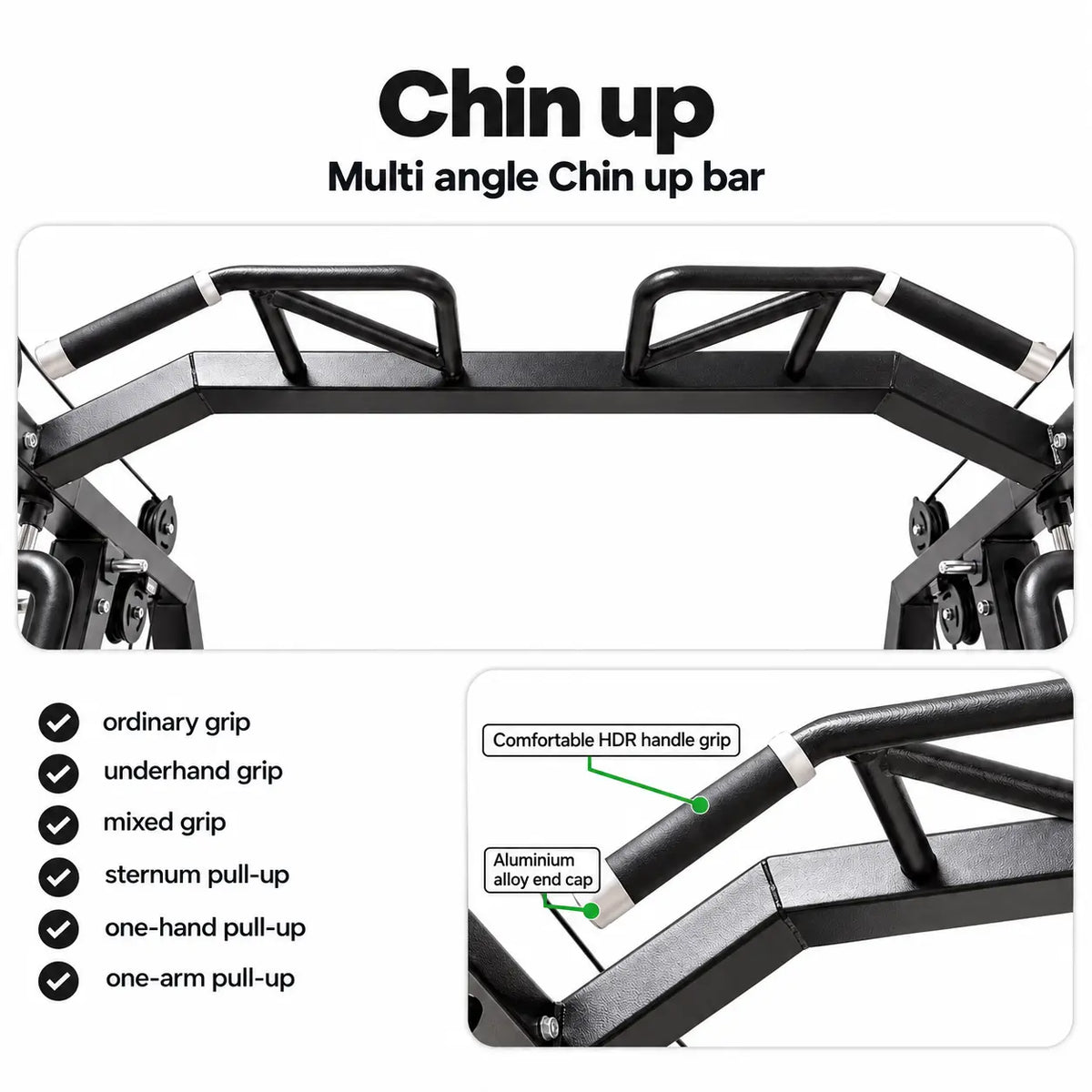

Multi-Angle Chin-Up BarOverhand, underhand, mixed and one-arm grip positions
🛡️
Long and Short Safety RacksABS padded steel safety catches for rack work
🏋️
Chrome Smith BarSolid, knurled, chrome plated bar on hard chrome guide rods
💪
Dip HandlesFor bodyweight chest, triceps and shoulder dips
📦
Plate and Bar StorageOlympic bar holders and plate storage posts on the frame
🦵
Ankle StrapFor cable glute, hamstring and hip work
🤚
Adjustable Single Handles (Pair)For unilateral presses, flyes and rows
🔺
Close-Grip TriangleFor seated rows and close-grip pulldowns
➖
Lat Pulldown BarWide-grip bar for pulldowns and rows
📏
Straight BarFor cable curls, pushdowns and upright rows
🪢
Tricep RopeFor pushdowns, overhead extensions and face pulls
🎯
Torso HandlePadded handle for chest and back cable work
🔄
Revolving Curl/Row BarRotating bar for curls and seated rows
⚠️
Not IncludedOlympic weight plates and a bench are sold separately
Why buyers choose it

G7S Key Features

Six training functions in one frameSmith machine, power rack, dual cable trainer, chin-up bar, lat pulldown and low row
Dual adjustable cable systemIndependent height-adjustable pulleys for crossovers and unilateral work
Plate loaded resistanceUses your own Olympic plates, with sleeves that fit 1 inch and 2 inch plates
350kg rack and Smith capacityJ-hooks, safeties and Smith machine each rated to 350kg
Long and short safety racksPadded catches for squats, bench press and rack pulls
Landmine / T-bar row stationLandmine presses, rows and rotational barbell work
Non-slip metal footplate5mm thick plate for stable footing during pulls
Leather-covered foam rollersAluminium alloy core with anti-sweat leather covering

Build Quality and Cable System

The G7S uses hard chrome plated Smith guide rods, chrome plated loading sleeves and a powder coated steel frame. The frame weighs 270kg assembled, which adds stability during heavy rack and Smith work.

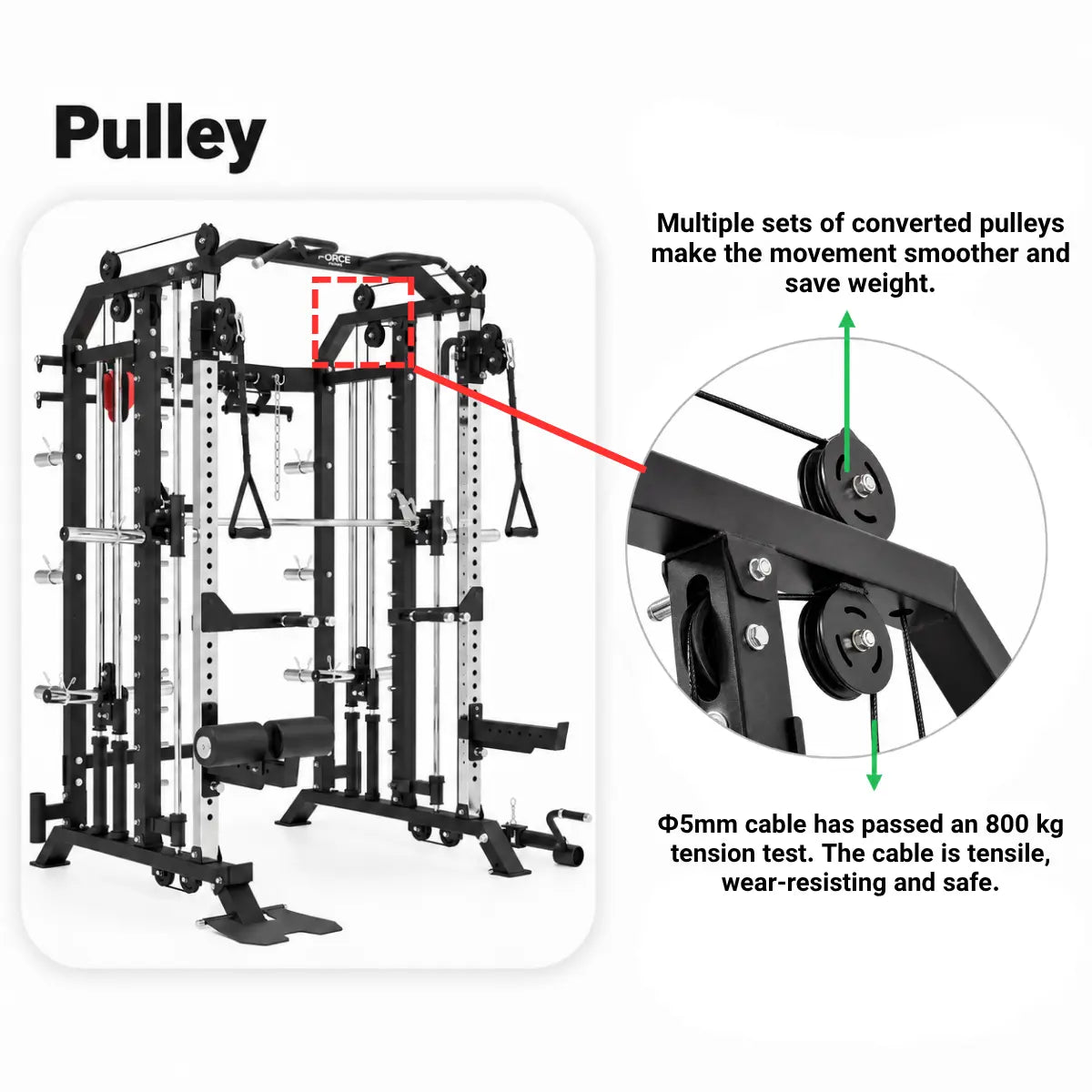

The dual cable system runs a 2:1 ratio, so the handle resistance is roughly half the plate weight loaded, giving smoother cable travel and finer progression. The main frame uses 50 x 70mm steel tubing with up to 3mm wall thickness, on a 50 x 100mm x 3mm base.

Cable Ratio2:1
Cable Rating2000lb tensile strength, cast pulleys
Sleeve Rating126kg (277.5lbs) per loading sleeve
Cable Station Load252kg (555lbs) both sides combined

Optional Upgrades

Jammer arm attachment
Lat seat attachment
Leg press attachment
Leg extension / leg curl
Additional lat pulldown bar
Professional assembly

Browse compatible options in our rack and machine attachments range.


Exercise library

What Exercises Can You Do on the G7S?

Legs and Glutes

  • Smith machine squat
  • Free-weight back squat in the rack
  • Smith split squat and lunge
  • Cable glute kickback (ankle strap)
  • Cable Romanian deadlift
  • Smith hip thrust

Chest and Shoulders

  • Smith flat and incline bench press
  • Barbell bench press with safeties
  • Cable crossover (high, mid and low)
  • Smith overhead press
  • Cable lateral raise
  • Landmine press

Back

  • Lat pulldown (wide and close grip)
  • Seated cable row
  • Wide, neutral and chin-up pull-ups
  • T-bar / landmine row
  • Single-arm cable row
  • Face pull (rope)

Arms and Core

  • Cable bicep curl (straight or revolving bar)
  • Tricep rope pushdown
  • Overhead cable tricep extension
  • Parallel bar dips
  • Cable woodchop and Pallof press
  • Kneeling cable crunch

Full specs

G7S Technical Specifications

Product Type Plate loaded functional trainer with Smith machine and power rack
Model G7S
Training Functions Smith machine, power rack, dual cable trainer, chin-up bar, lat pulldown, low row, dips, landmine
Max Combined Rated Capacity 363kg (800lbs)
Smith Machine Capacity 350kg
J-Hooks and Safeties Capacity 350kg
Cable Station Load 252kg (555lbs), both sides combined
Loading Sleeve Rating 126kg (277.5lbs), fits 1 inch and 2 inch plates
Chin-Up Bar Capacity 160kg
Max User Weight 159kg (350lbs)
Cable Ratio 2:1
Cable Rating 2000lb tensile strength, cast pulleys
Frame Finish Powder coated steel, hard chrome guide rods and sleeves

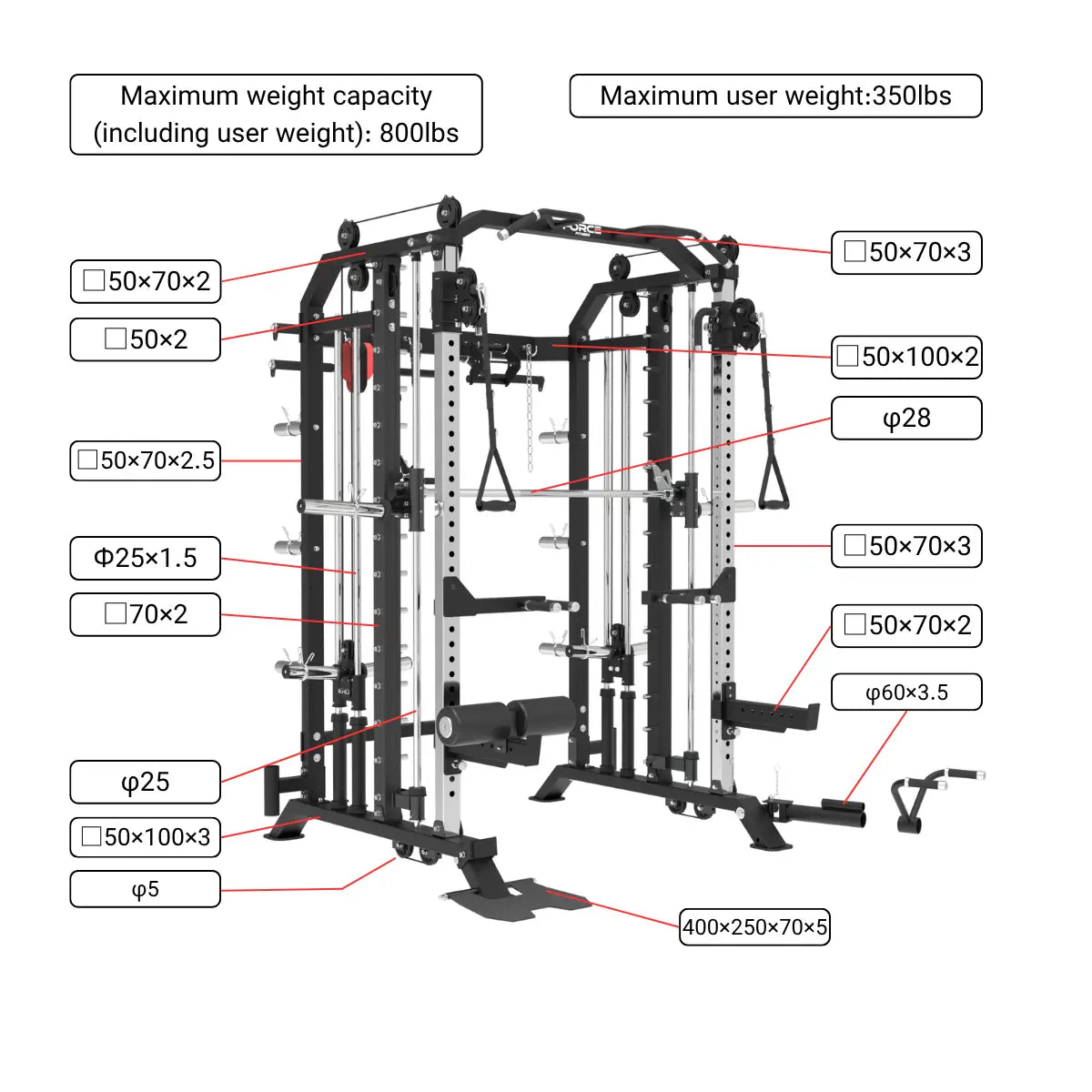

Frame Steel Tubing 50 x 70mm main frame (2mm to 3mm wall), 50 x 100mm x 3mm base

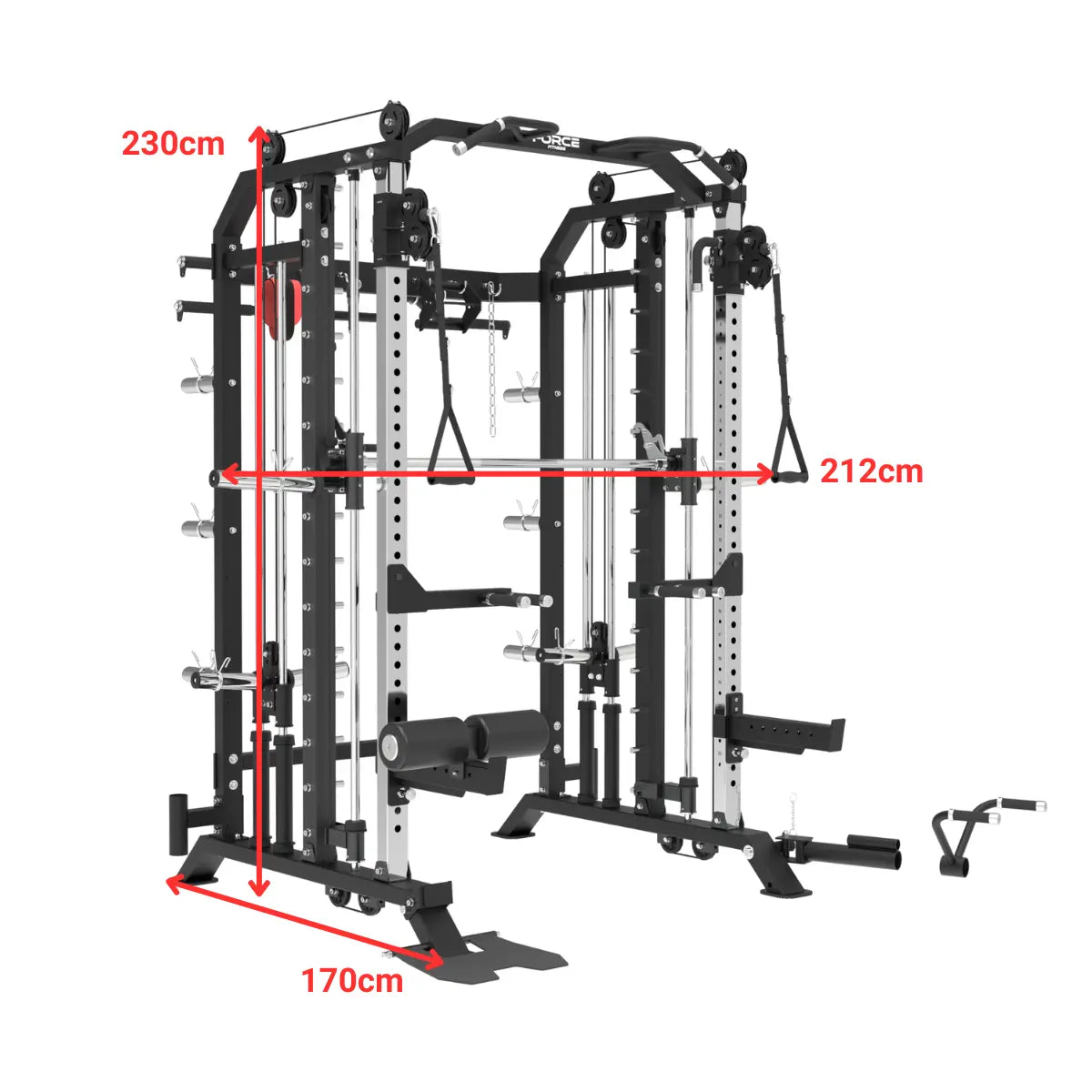

Assembled Dimensions 2120mm W x 1700mm D x 2300mm H
Machine Weight 270kg
Weight Plates Not included (Olympic plates sold separately)
Warranty 10 years frame, 1 year moving parts
Assembly Time Approximately 5 to 6 hours (professional installation)
Pros
  • Replaces a Smith machine, power rack and cable trainer with one frame
  • 363kg combined rating and 350kg rack and Smith capacity
  • Uses Olympic plates you may already own, with no built-in stack to pay for
  • Large attachment pack included, from tricep rope to revolving curl/row bar
  • 10 year frame warranty
Cons
  • Plates are not included, so budget for a full Olympic plate set
  • Changing plates is slower than moving a selector pin for quick circuits
  • 2120mm x 1700mm footprint and 2300mm height need a dedicated space and ceiling clearance
  • 270kg machine with a 5 to 6 hour assembly, so plan delivery access and install time
  • No bench included
Buyer fit

Who Is the G7S For?

  • Home and garage gym ownerswho want Smith, rack and cable training without buying three machines.
  • PT studio operatorswho need one rig for squat, press, pull and cable programming.
  • Lifters who already own Olympic platesand would rather not pay for integrated weight stacks.
  • G5S shoppers who want more capacityand a heavier frame with a wider attachment pack.
  • Small commercial and strata gymsthat want one footprint covering several strength stations.

Who should not buy the G7S: if you want instant pin-adjusted resistance for fast circuits or high client turnover, a pin-loaded machine from our functional trainer range will suit you better. If your ceiling is under about 2.4m or you only need a basic squat rack, look at our power racks and squat racks instead.

Short on space but need a full gym? A separate Smith machine, power rack and cable crossover can take up most of a double garage. The G7S puts all three in a 2120mm x 1700mm footprint and shares one set of Olympic plates between the Smith bar, rack work and cables, which saves both floor space and the cost of buying three machines.

Visit Our Sydney Showroom

📍
Visit Us10/202 Milperra Road, Milperra NSW 2214Mon to Fri 9am to 5pmSaturday by appointment onlySunday closed
📞
Contact UsPhone: 1300 247 888WhatsApp: +61 412 029 000sales@247gymequipment.com.auDepot pickup: Sydney (Milperra), Melbourne (Derrimut VIC), Brisbane (Archerfield QLD)
🗺️
Get DirectionsCall ahead to confirm the G7S is on display.Open in Maps

G7S Delivery Australia Wide

🚚Australia-Wide FreightPalletised freight to all states, with depot pickup in Sydney, Melbourne and Brisbane.
🛠️Professional AssemblyAvailable in Sydney metro via our assembly service.
⏱️Stock and DispatchCall 1300 247 888 for current stock and dispatch times.

You May Also Need

Olympic Weight Plates→ Functional Trainers and Smith Machines→ Rack and Machine Attachments→ Rubber Gym Flooring→

Questions

G7S Functional Trainer FAQs

Yes, both. The G7S is built to a commercial standard with a 363kg combined rated capacity, 350kg Smith and rack capacity and a 270kg frame, so it suits serious home and garage gyms as well as PT studios and small commercial or strata gyms.
The G7S measures 2120mm wide, 1700mm deep and 2300mm high. Allow extra clearance on each side for loading plates and moving through cable exercises, and a ceiling of roughly 2.4m or more for pull-ups and overhead pressing.
The G7S includes the Smith machine and power rack frame with dual cable towers, a chrome Smith bar, long and short safety racks, a multi-angle chin-up bar, dip handles, bar and plate storage, and a cable attachment pack: ankle strap, pair of single handles, close-grip triangle, lat pulldown bar, straight bar, tricep rope, torso handle and revolving curl/row bar.
No. The G7S is plate loaded, so Olympic weight plates are purchased separately. The chrome sleeves fit both 1 inch and 2 inch plates. You can add plates from our Olympic weight plates range.
The G7S has a maximum combined rated capacity of 363kg (800lbs). The Smith machine and the J-hooks and safeties are each rated to 350kg, the cable stations to 252kg across both sides, each loading sleeve to 126kg, the chin-up bar to 160kg, and the maximum user weight is 159kg.
Both are plate loaded functional trainers with a Smith machine and safety racks. The G7S is the heavier-duty model, with a larger 2120mm x 1700mm x 2300mm frame weighing 270kg, a 363kg combined rating, 350kg Smith and rack capacity and a wider attachment pack. The G5S is the more compact, lower-priced entry point.
Neither is better for everyone. A weight stack machine changes resistance quickly with a pin, which suits circuits and busy PT studios. A plate loaded machine like the G7S uses Olympic plates you may already own, avoids paying for built-in stacks and lets resistance scale with your plates up to the machine's rated capacity. Our plate loaded functional trainer guide compares the two in detail.
Yes, in Sydney metro. Professional assembly usually takes about 5 to 6 hours and can be booked through our assembly and installation service. For installation outside Sydney metro, contact us on 1300 247 888 with your postcode.
Yes. The G7S ships on a pallet by freight to all states and territories, with depot pickup available in Sydney (Milperra), Melbourne (Derrimut) and Brisbane (Archerfield). Freight cost depends on your location and is shown at checkout or quoted by our team.
Our showroom is at 10/202 Milperra Road, Milperra NSW 2214, open Monday to Friday 9am to 5pm and Saturday by appointment only. Call 1300 247 888 before visiting to check the G7S is on display.
The G7S comes with a 10 year warranty on the frame and a 1 year warranty on moving parts.
It depends on how heavy you train. Many lower-priced machines have lighter frames and lower load ratings. The G7S is rated to 363kg combined, with 350kg Smith and rack capacity, a 270kg frame, 2000lb tensile cables and a 10 year frame warranty, which suits lifters who plan to train heavy for years. If you train lighter or need a smaller footprint, the G5S may be enough.
At minimum you need Olympic weight plates. Most buyers also add an adjustable bench for pressing, rubber gym flooring to protect the floor, and optionally the jammer arm, lat seat, leg press or leg extension and curl attachments.
You can do Smith squats, presses and hip thrusts, free-weight squats and bench press in the rack, cable crossovers, lat pulldowns, seated rows, curls, tricep pushdowns, face pulls, pull-ups, dips, landmine presses and rows, and core work such as woodchops and Pallof presses.
For buyers who want a Smith machine, power rack and dual cable trainer, the G7S usually costs less than buying the three separately and takes a fraction of the floor space. Its value is strongest if you already own, or plan to buy, Olympic plates.

G7S delivery areas: We deliver the G7S plate loaded functional trainer with Smith machine from our Sydney warehouse in Milperra to home gyms, garage gyms and PT studios across Sydney, Melbourne, Brisbane, Adelaide, Canberra, the Gold Coast, Newcastle, Wollongong, Hobart and regional Australia, with depot pickup in Sydney, Melbourne and Brisbane.
